    Wire Knitting & Products

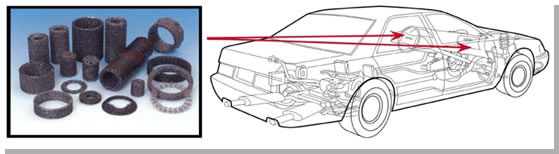

    Knitted fabric is a meshwork weared in a special way . it is not only one of the mostly used componet in wire-mesh demister manu-facturing and other separation engineering ,but also is widely used in automobile industry with the continuous development of indurtry.people know more and more about the applicable fiedes and application scope of kintted fabric.

    Liande owns more than 20 different types of weaving machine which can produce with the wire diameter ranging form 0.08 mm to 0.3 mm .,the max .width is 30 inch ,the molded meshwok can be rolled to wave type .And there are kinds of materials for the clients to choose .

    The standard prescribes of three types gas -liquid filter screen ,namely ,standard type ,high efficiency type and great penetration.They are showed in the following list.


    (type)

    holes No. & mesh width

    wire dia. (MM)

    Material

    Weight (kg/sqm)

    Standard

    40-100

    0.1X0.4

    1Cr18Ni9

    1/0.5

    60-180

    0.1X0.4

    1Cr18Ni9

    1/0.5

    140-400

    0.1X0.4

    1Cr18Ni9

    1/0.5

    40-100

    0.27

    Lead wire with Zn-coating

    1/0.7

    40-100

    0.1X0.4

    copper wire

    1/0.7

    High efficiency

    70-100

    0.1X0.3

    stainless steel wire

    1/0.6

    80-100

    0.1X0.3

    stainless steel wire

    1/0.6

    90-150

    0.1X0.3

    stainless steel wire

    1/0.6

    200-400

    0.1X0.3

    stainless steel wire

    1/0.6

    Great penetration

    20-160

    0.1X0.4

    stainless steel wire

    1/0.4

    30-150

    0.1X0.4

    stainless steel wire

    1/0.4

    70-400

    0.1X0.4

    stainless steel wire

    1/0.4
